What factor has a greater effect on concrete compressive strength than any other? Most engineers would say water- cement ratio . . . as water-cement ratio increases strength decreases. Duff Abrams showed this in 1919, and Abrams’ law is the principle behind most concreting proportioning methods used today. But Abrams ran his tests on fully consolidated concrete. Unless concrete is properly consolidated, voids reduce strength regardless of the water-cement ratio. And, as shown in Figure 1, the effect is significant. Right after it’s placed, concrete contains as much as 20% entrapped air. The amount varies with mix type and slump, form size and shape, the amount of reinforcing steel, and the concrete placement method. At a constant water- cement ratio, each percent of air decreases compressive strength by about 3% to 5%. Consolidating the concrete, usually by vibration, increases concrete strength by driving out entrapped air. It also improves bond strength and decreases concrete permeability.
 |
| Figure 1. Degree of consolidation can have as much effect on compressive strength as water cement ratio. Low-slump concrete may contain up to 20% entrapped air when placed. |
Vibration is a two-part process
How does vibration consolidate concrete? Figure 2 shows it to be a two- part process. A vibrator creates pressure waves that separate aggregate particles, reducing friction between them. Piles of concrete flat-ten as the concrete flows around reinforcing steel and up to the form face. Large voids (honeycomb) disappear. But making the concrete flowable doesn’t finish the compaction proces s. Almost simultaneously, a second stage starts to occur as entrapped air bubbles rise to the surface.
This deaeration process continues after the concrete has flattened out. Until both vibration stages are complete, the concrete isn’t fully consolidated. If the vibrator is removed too soon, some of the smaller bubbles won’t have time to rise to the surface. Vibration must continue until most of the air entrapped during placement is removed. It’s usually not practical, though, to remove all the entrapped air with standard vibrating equipment.
This deaeration process continues after the concrete has flattened out. Until both vibration stages are complete, the concrete isn’t fully consolidated. If the vibrator is removed too soon, some of the smaller bubbles won’t have time to rise to the surface. Vibration must continue until most of the air entrapped during placement is removed. It’s usually not practical, though, to remove all the entrapped air with standard vibrating equipment.
 |
| Figure 2. A vibrator consolidates concrete in a two-part process. The first waves liquify the concrete so it flows better and the continuing waves knock out air bubbles. |
Different vibrators for different jobs
The earliest form of equipment used as a vibrator was a rod stuck into the concrete, pushed down and pulled up. Rodding works for concretes with slumps greater than 3 inches, but it’s rarely used because of the costly labor required. Because rodding doesn’t put extra pressure on forms, howe ve r, it has helped more than one contractor complete a concrete pour when forms were bulging.
The most common vibrator used is the electric, flexible shaft type. Other types include electric motor-in- head, pneumatic, and hydraulic. Vibrator output, usually expressed as a frequency, is controlled in a different
way for each type of vibrator:
The most common vibrator used is the electric, flexible shaft type. Other types include electric motor-in- head, pneumatic, and hydraulic. Vibrator output, usually expressed as a frequency, is controlled in a different
way for each type of vibrator:
- An electric vibrator uses voltage.
- A pneumatic vibrator uses air pressure.
- A hydraulic vibrator uses pressure and flow rate of hydraulic fluid.
On the jobsite the contractor can check the operating performance of his equipment by measuring frequency.
If it’s low he should check for voltage fluctuations, air pressure losses, or hydraulic pressure drops. The type of vibrator must match the requirements of the concrete and the jobsite (Figure 3). Frequency rates determine the amount of vibration time required to complete the two-stage consolidation process.
In the 1960s, vibration frequencies were much lower. To compact a 1⁄2-inch-slump concrete took 90 seconds at 4,000 vibrations per minute (vpm), 45 seconds at 5,000 vpm, and 25 seconds at 6,000 vpm. Today’s typical frequency of 15,000 vpm requires only 5 to 15 seconds of vibration
time.
Internal vibrators chosen for most jobs have a frequency of 12,000 to 17,000 vpm in air. The common flexible shaft-type vibrator reduces its frequency by about 20% when immersed in concrete. Motor-in- head types provide a constant frequency when in air or concrete.
If it’s low he should check for voltage fluctuations, air pressure losses, or hydraulic pressure drops. The type of vibrator must match the requirements of the concrete and the jobsite (Figure 3). Frequency rates determine the amount of vibration time required to complete the two-stage consolidation process.
In the 1960s, vibration frequencies were much lower. To compact a 1⁄2-inch-slump concrete took 90 seconds at 4,000 vibrations per minute (vpm), 45 seconds at 5,000 vpm, and 25 seconds at 6,000 vpm. Today’s typical frequency of 15,000 vpm requires only 5 to 15 seconds of vibration
time.
Internal vibrators chosen for most jobs have a frequency of 12,000 to 17,000 vpm in air. The common flexible shaft-type vibrator reduces its frequency by about 20% when immersed in concrete. Motor-in- head types provide a constant frequency when in air or concrete.
 |
| Figure 3. The vibrator head must fit between the rebars and have a high enough frequency to quickly consolidate the concrete. |
How to use an internal vibrator
Producing a dense concrete without segregation requires an experienced vibrator operator. Inexperienced operators tend to merely flatten the concrete because they don’t vibrate long enough to deaerate the concrete. Undervibration is more common than over vibration because of a worker’s effort to keep up with the concrete or to increase productivity. The operator can judge whether or not vibration is complete by watching the concrete surface.
When no more large air bubbles escape, consolidation is adequate. Skilled operators also listen to the pitch or tone of the vibrator motor. When an immersion vibrator is inserted in concrete, the frequency usually drops off, then increases, becoming constant when the concrete is free of entrapped air.
Never use a vibrator to move concrete laterally. Concrete should be carefully deposited in layers as close as possible to its final position in the form. As each layer is placed, insert the vibrator vertically. The distance between insertions should be about 11⁄2 times the radius of action (usually 12 to 24 inches). Radius of action is a distance from the vibrator head within which consolidation occurs. It varies with equipment and concrete mix.
When no more large air bubbles escape, consolidation is adequate. Skilled operators also listen to the pitch or tone of the vibrator motor. When an immersion vibrator is inserted in concrete, the frequency usually drops off, then increases, becoming constant when the concrete is free of entrapped air.
Never use a vibrator to move concrete laterally. Concrete should be carefully deposited in layers as close as possible to its final position in the form. As each layer is placed, insert the vibrator vertically. The distance between insertions should be about 11⁄2 times the radius of action (usually 12 to 24 inches). Radius of action is a distance from the vibrator head within which consolidation occurs. It varies with equipment and concrete mix.
Walls and columns
Special techniques are necessary to blend layers of concrete in walls and columns. Let the vibrator penetrate quickly to the bottom of the layer and at least 6 inches into the preceding layer. Then move the vibrator up and down, generally for 5 to 15 seconds, to blend the layers. Withdraw the vibrator gradually with a series of rapid up and down motions.
Elevated beams and slabs
Beams and joists placed monolithically with slabs should be vibrated separately before slab placement. Place the slab concrete after vibrating the beam, but before the beam concrete is set. Allow the vibrator to penetrate through the slab into the previously placed beam to blend the two structural elements.
Undervibration vs Overvibration
Undervibration is far more common than overvibration. Good quality normal- weight concrete is not readily susceptible to the problems caused by overvibration, so when in doubt, vibrate more.
The problems associated with undervibration include:
The problems associated with undervibration include:
- Honeycombing
- Excessive entrapped air
- Sand streaks
- Cold joints
- Subsidence cracking
- Segregation
- Sand streaks
- Loss of entrained air
- Form deflection
- Form damage or failure
Overvibrating, because it causes entrained air loss, might be expected to decrease freeze-thaw resistance. Research results don’t bear this out, however. In one study, overvibration of low- slump, air- entrained concrete had no effect on freeze-thaw resistance. Overvibration should not be a concern unless high- slump, improperly proportioned concrete is being placed.
Vibrating around congested reinforcement
To provide good concrete- to- steel bond, vibration is especially important in areas congested with rebar. Vibration alone doesn’t solve the problem. Other actions must be taken to help complete concrete consolidation, such as:
- Using admixtures to increase flowability but limit segregation
- Changing mix proportions or ingredients to increase flowability
- Designing the reinforcing for ease of concrete placing
 |

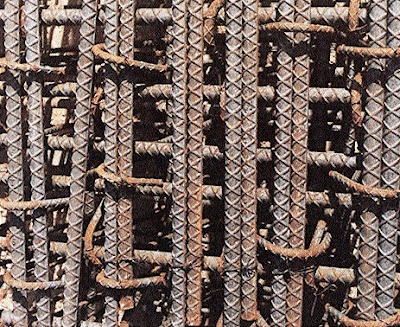

| Figure 4. Vibration alone won’t consolidate concrete adequately when reinforcing is congested. To ensure adequate consolidation it may be necessary to use superplasticizers, reduce aggregate maximum size, or adjust rebar spacing. |
To achieve proper consolidation by internal vibration in congested areas, the designer should provide obstruction-free vertical access of 4x6-inch minimum openings to insert the vibrator. Horizontal spacing of these openings should not exceed 24 inches or 11⁄2 times the vibrator’s radius of action. Engineers designing congested reinforcement should also design for proper consolidation, otherwise contractors can’t always guarantee adequate concrete to steel bond (Figure 4).
References
1. “Guide for Consolidation of Concrete,” ACI 309R-87, ACI Materials Journal, September-October 1987, American Concrete Institute, Box 19150, Detroit, Michigan 48219.
2. Whiting, D., G. W. Seegebrecht, and S. Tayabji, “Effect of Degree of Consolidation on Some Important Properties of Concrete,” SP-96, Consolidation of Concrete, American Concrete Institute.
3. Olsen, Mikael, “Energy Requirements for Consolidation of Concrete During Internal Vibration,” SP-96, Consolidation of Concrete, American Concrete Institute.
4. Troxell, Davis, & Kelly, Composition and Properties of Concrete, McGraw- Hill, New York, New York, 1968.
2. Whiting, D., G. W. Seegebrecht, and S. Tayabji, “Effect of Degree of Consolidation on Some Important Properties of Concrete,” SP-96, Consolidation of Concrete, American Concrete Institute.
3. Olsen, Mikael, “Energy Requirements for Consolidation of Concrete During Internal Vibration,” SP-96, Consolidation of Concrete, American Concrete Institute.
4. Troxell, Davis, & Kelly, Composition and Properties of Concrete, McGraw- Hill, New York, New York, 1968.
